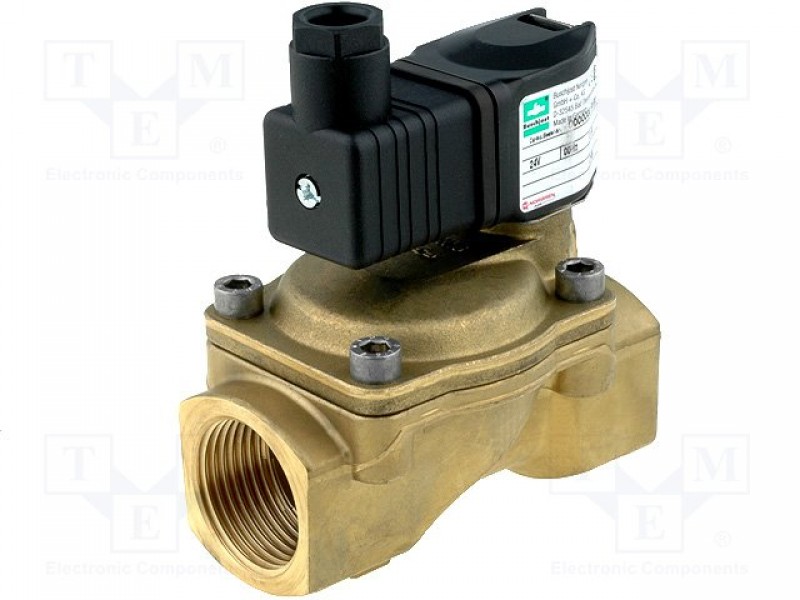

Electromagnetic valve; BSP 1"; 25mm; Pressure:0.1÷16bar; 24VDC

Price net:

Quantity:	1+	5+
Price net:	Log In!	Log In!

Availability

8 pcs

Index:

8240400.02400

Product info ID:

202724

Manufacturer

NORGREN HERION

Details

Electromagnetic valve; BSP 1"; 25mm; Pressure:0.1÷16bar; 24VDC

Pneumatic module type	electromagnetic valve
Thread	BSP 1"
Cable external diameter	25mm
Working pressure	0.1...16bar
Operating temperature	max. 50°C
Max medium temperature	90°C
Supply voltage	24V DC
Sealing	IP65
Body material	brass
Seal material	NBR rubber
Electrical connection	DIN 43650 typ A
Pneumatic components features	systems with neutral gases and liquids , membrane structure
A dimension	62mm
H dimension	97.5mm
H1 dimension	77mm
H2 dimension	33mm
L dimension	95mm
L1 dimension	20mm
Dimension L2	36...30mm

Documents

1) technical documentation
