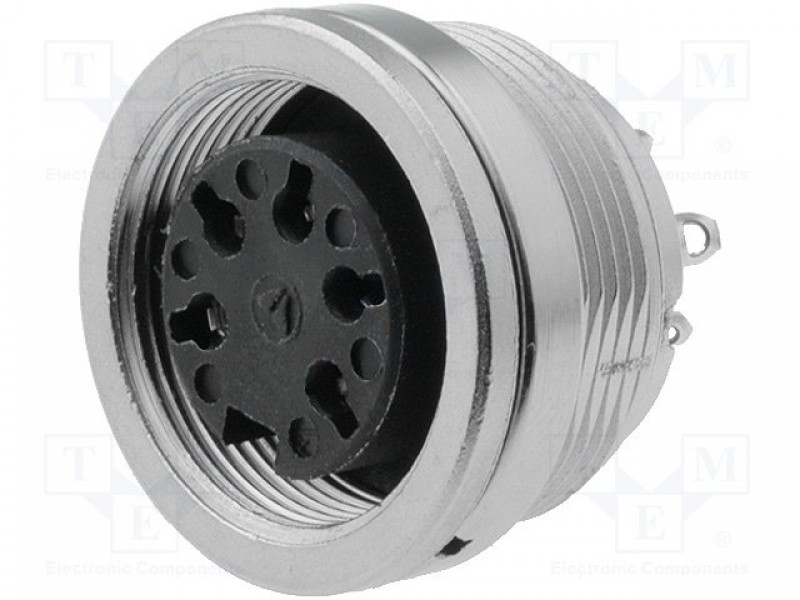

Connector: circular; Series: C091D; female; socket; silver plated

Price net:

Quantity:	1+	10+	50+	100+	250+
Price net:	Log In!	Log In!	Log In!	Log In!	Log In!

Availability

1 pcs

Index:

C091-31N0051002

Product info ID:

193203

Manufacturer

AMPHENOL

Details

Connector: circular; Series: C091D; female; socket; silver plated

Connector type	circular
Connector series	C091D
Connector type	female
Connector	socket
Contact plating	silver plated
Number of pins	5
Locking system	threaded joint , internal thread
Sealing	IP67
Body material	metal
Electrical mounting	soldering
Rated current	5A
Mechanical mounting	for panel mounting , rear side nut
Body plating	nickel
Rated voltage	300V
Type of pin configuration	DIN EN 60130-9
Wire cross section	0.5mm²
Operating temperature	-40...100°C
Panel thickness	max 5mm

Documents

1) technical documentation
